Quick Details

  • Condition: New
  • Machine Type: Bag Forming Machine
  • Bag Type: Other
  • Material: Paper
  • Computerized: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: MTED
  • Model Number: RZFD-190
  • Voltage: 380v
  • Power(W): 14kw
  • Dimension(L*W*H): 8500x2100x1600mm
  • Weight: 6000KG
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Paper Bag Length: 190-370 mm
  • Paper Bag Width: 90-190 mm
  • Paper Bag Bottom Width: 50-105 mm
  • Paper Thickness: 50-130 gsm
  • Machine Speed: 260 bags/min
  • Web correction system: Italy SELECTRA
  • Automatical counting system: Yes
  • Germany quality: Yes
  • Automatic Gluing Function: Yes
  • Capacity for 8hrs: max 100000bags

Packaging & Delivery

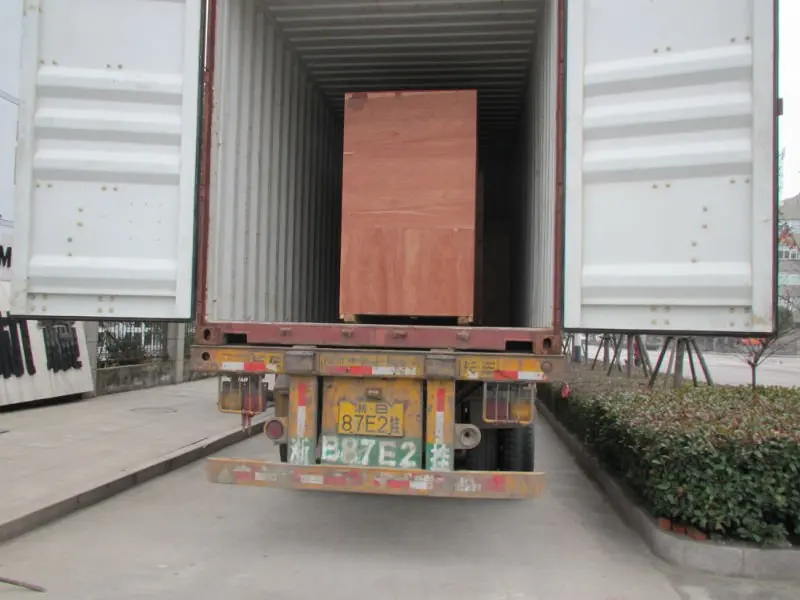

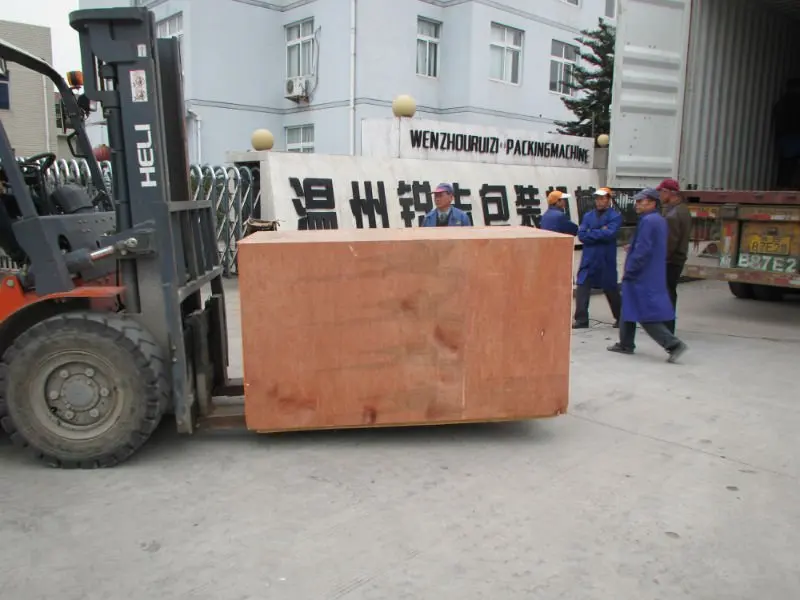

Packaging Details: export standard wooden case
Delivery Detail: 45-60Days

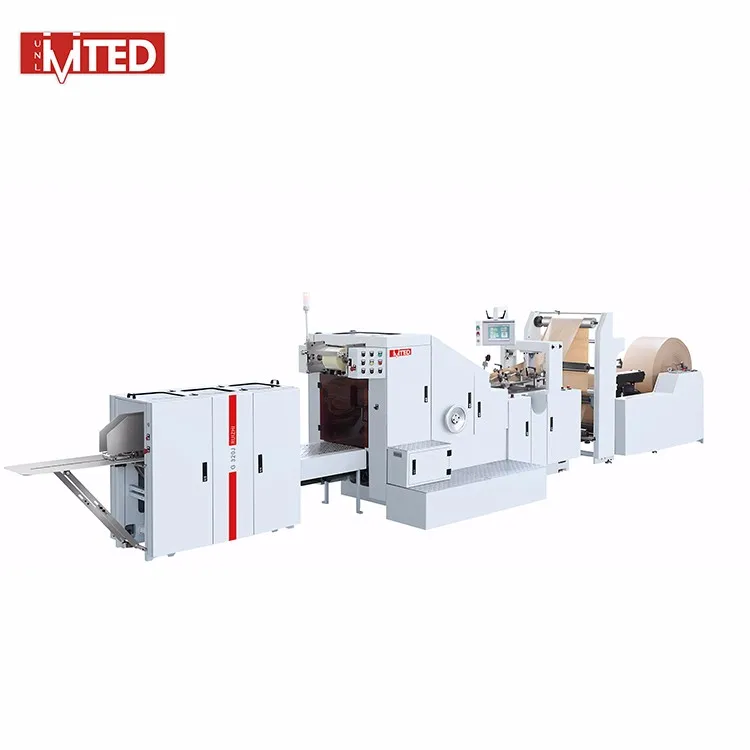

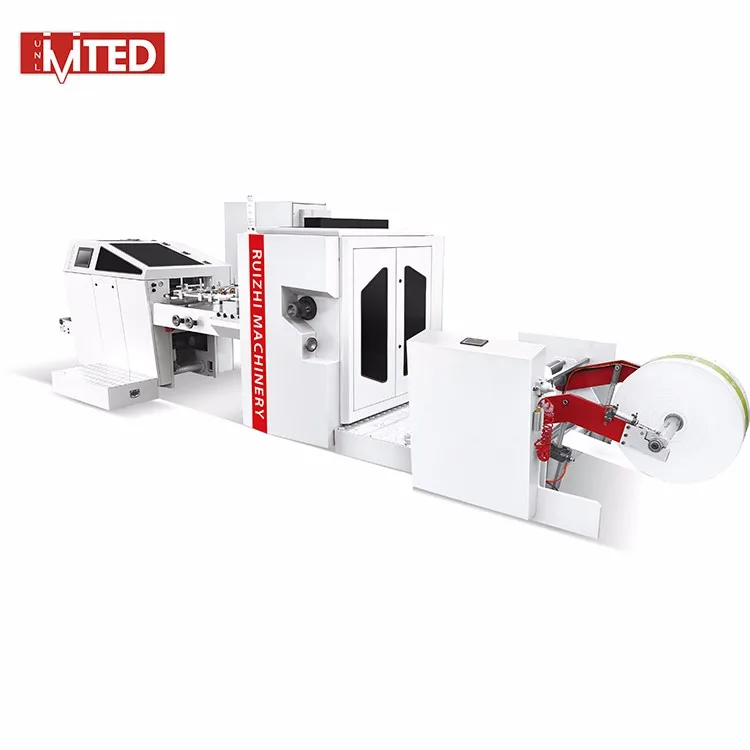

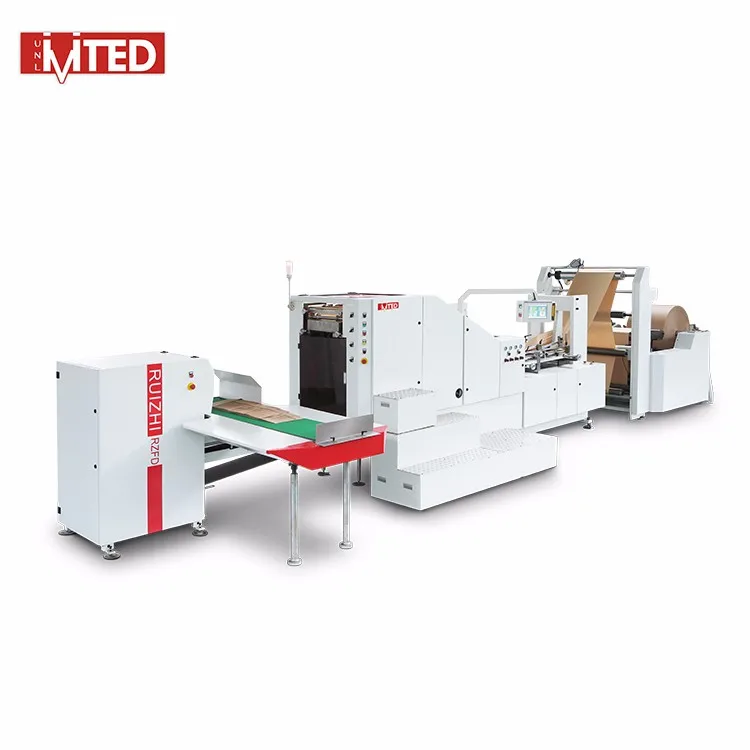

Full Automatic Square Bottom Paper Bag Making Machine

(RZ)

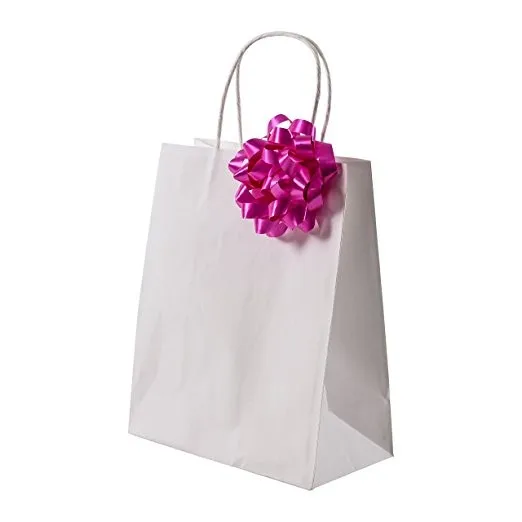

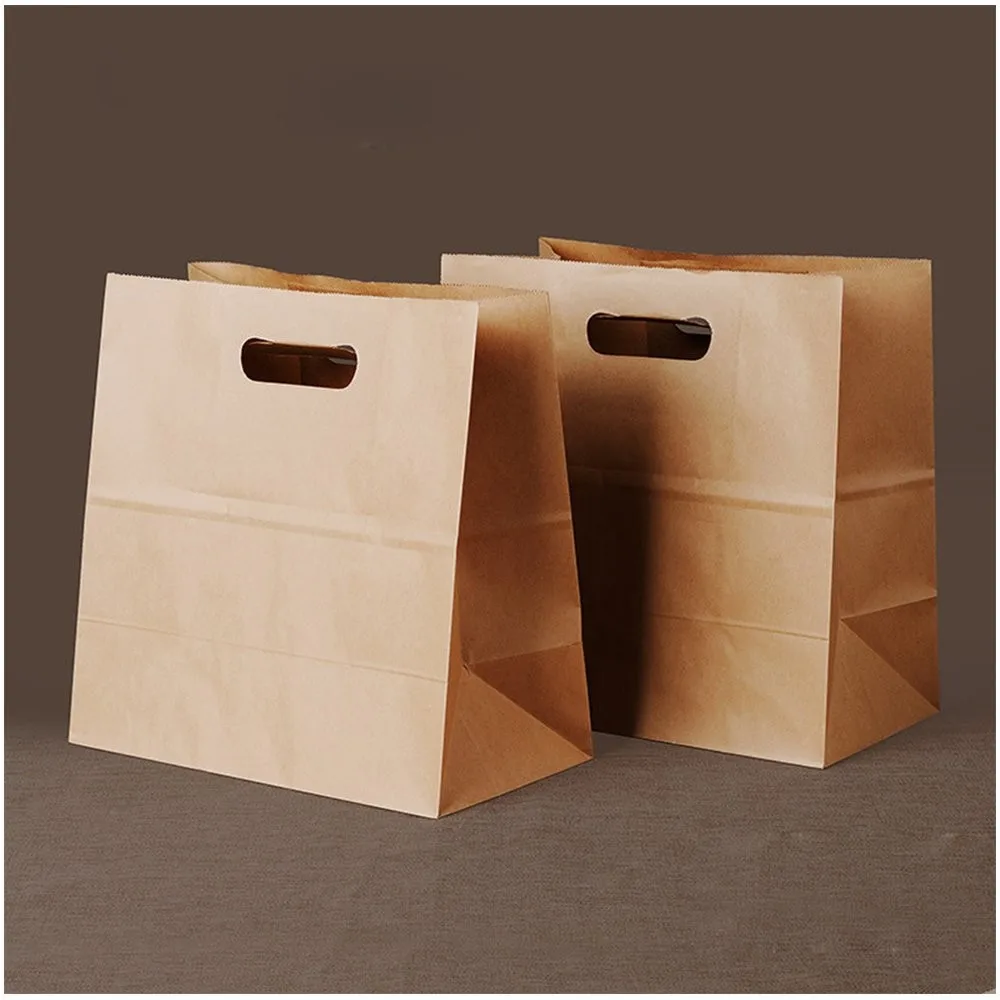

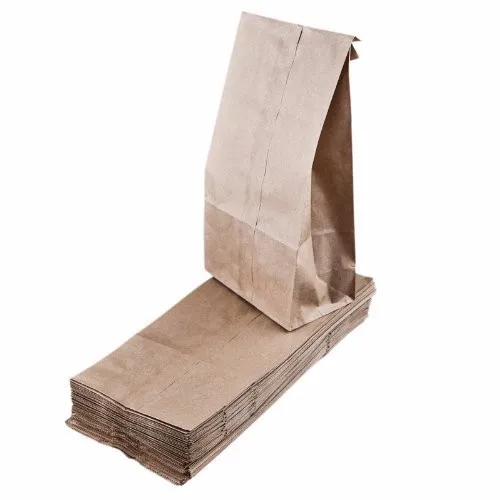

SAMPLE PICTURE

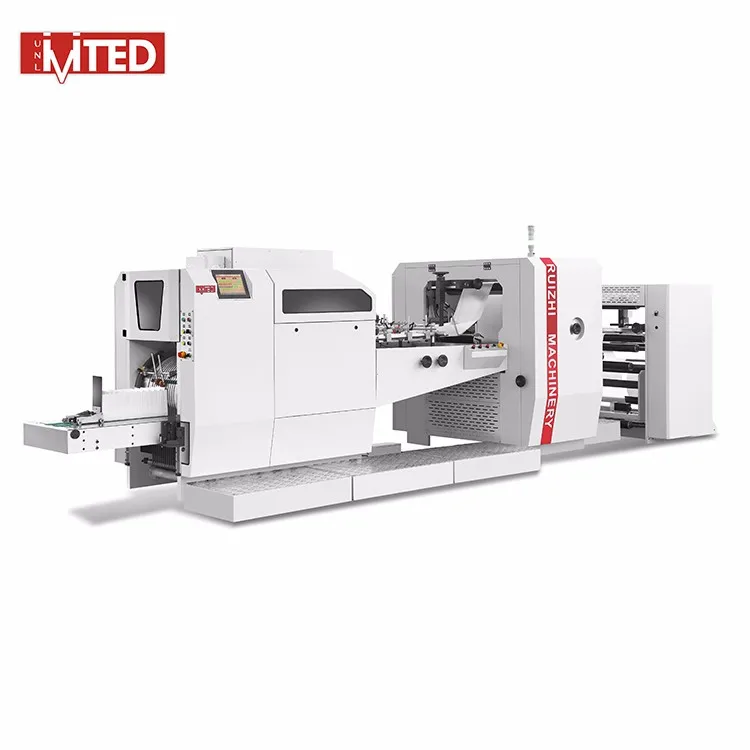

RZFD-190 is a fantastic full automatic square-bottom paper bag making machine, fed with primary or printed scroll,such as: kraft paper,striped brown paper, medico paper,coated paper etc.

Equipped with Germany REXROTH servo motor and servo driver, PLC integrated with optical fiber, Germany SICK tracking sensor and Italy SELECTRA EPC Unwinding system , RZFD-190 completes all processions efficiently and steadily to bring a beautiful paper bag all in a time, including: side gluing, print pattern photocell tracking,computer control length, tube forming, tube cutting off, bottom folding, bottom gluing.

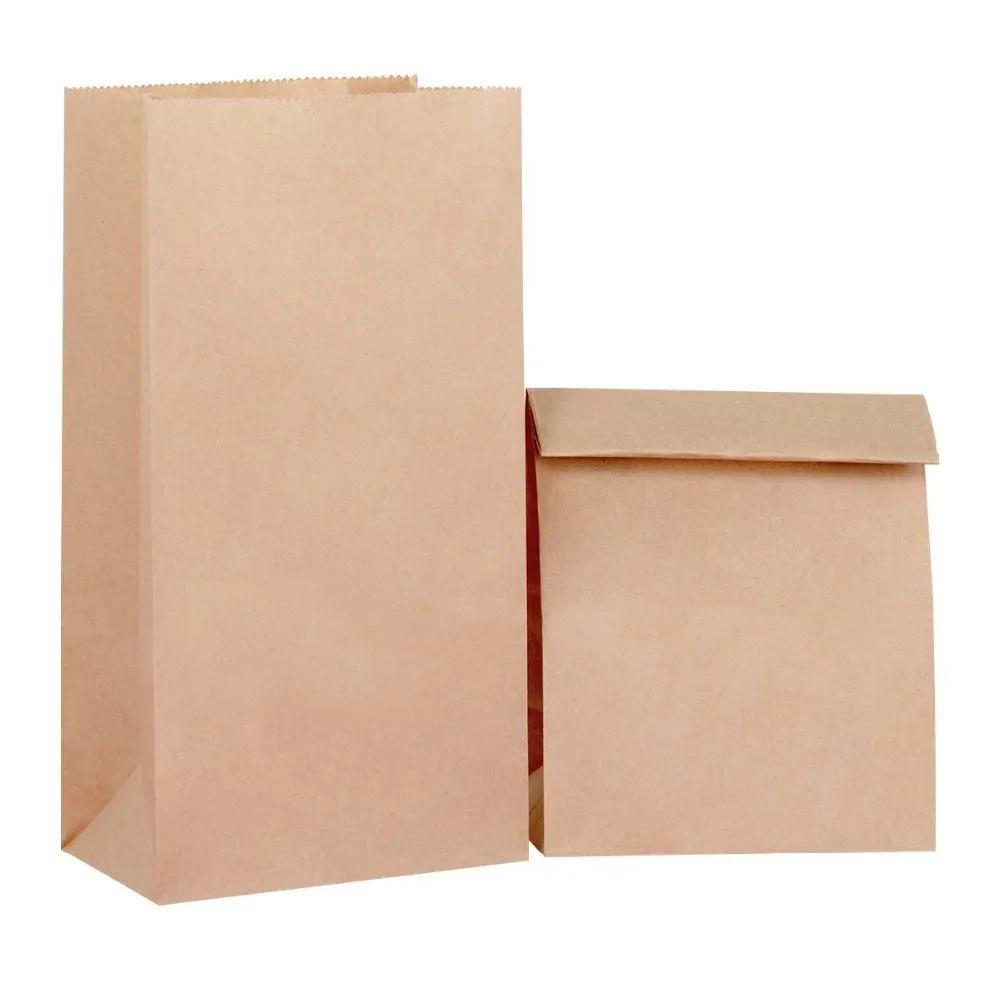

It bings you a beautiful square-bottom paper bag, the smallest size of the bag is 90x190x50mm(W*L*H),and the biggest size is 190x370x105mm(W*L*H).



  •

    Bag Forming at one process procedure



Machine ModelRZ-190
Paper Thickness40-130GSM
Unwinding Diameter1200mm
Unwinding Width290-620mm
Paper Bag Width90-190mm
Paper Bag Length190-370mm
Bottom Size50-105mm
Machine Speed260Bags/mins
Total Power14KW
Voltage380V(Three Phase Four-wire)
Machine Weight6000KG
Machine Size9000*1700*1600mm
PackagingWooden Case (configurated)











  • GERMANY REXROTH Touch screen is adopted for input control and machine status display,  so as to finish machine correction easily.

  • Equipped with originally imported SIEMENS MOTOR   and  GERMANY REXROTH servo  motor  drive,  to make the machine run steadily.

  • Germany SICK photoelectric detector is used to track the material to be printed, reduce the adjusting time and improve production efficiency.

  • Separate unwinding rollstand with lifting motor; Convex-type inflatable shaft for loading material

  • Magnetic powder brake for unwinding and automatically constant tension controller for unwinding tension control; ITALY SELECTRA EPC web guide control system for material  alignment;  alarm function for reminding replacing material and stopping-machine device for detecting  material broken.

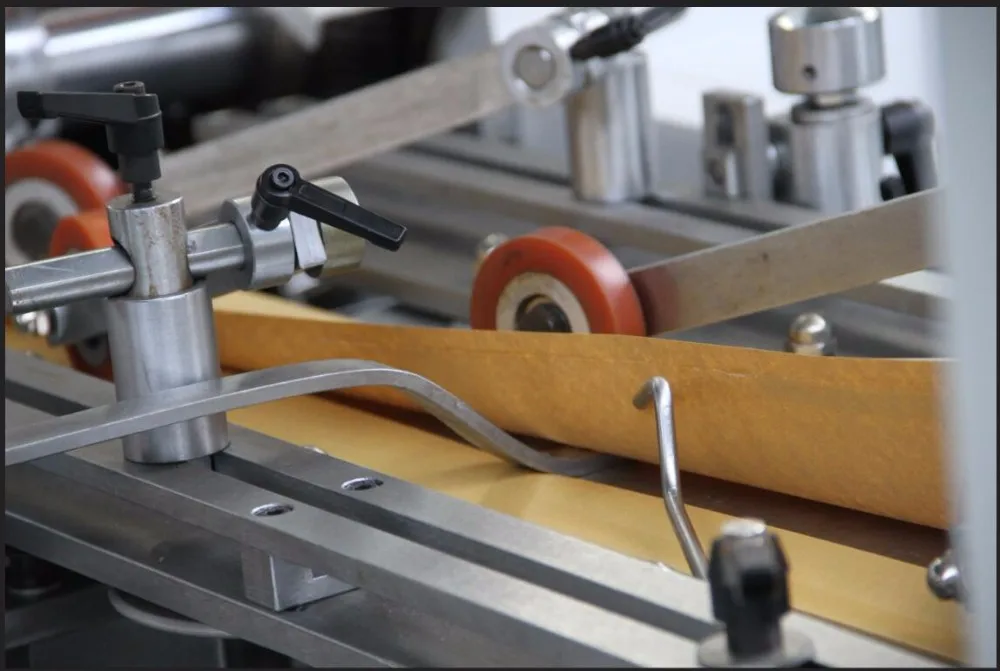

  • Fixed forming mould structure (side sealing is above the forming mould); automatic glue- spraying device (or gluing pulley) with automatic disengaging function is used for side gluing.

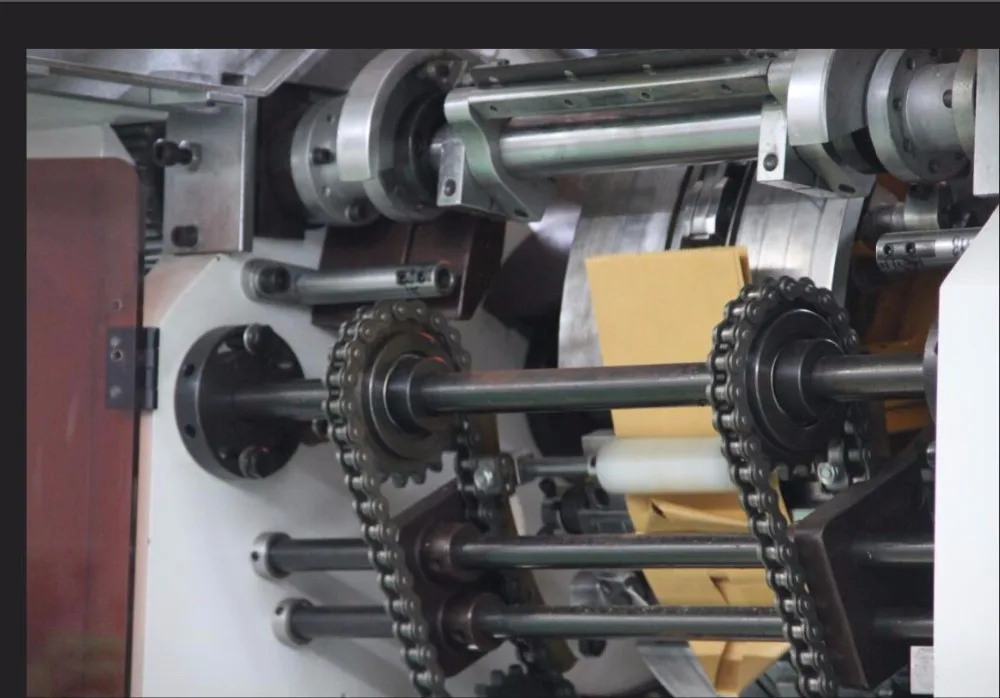

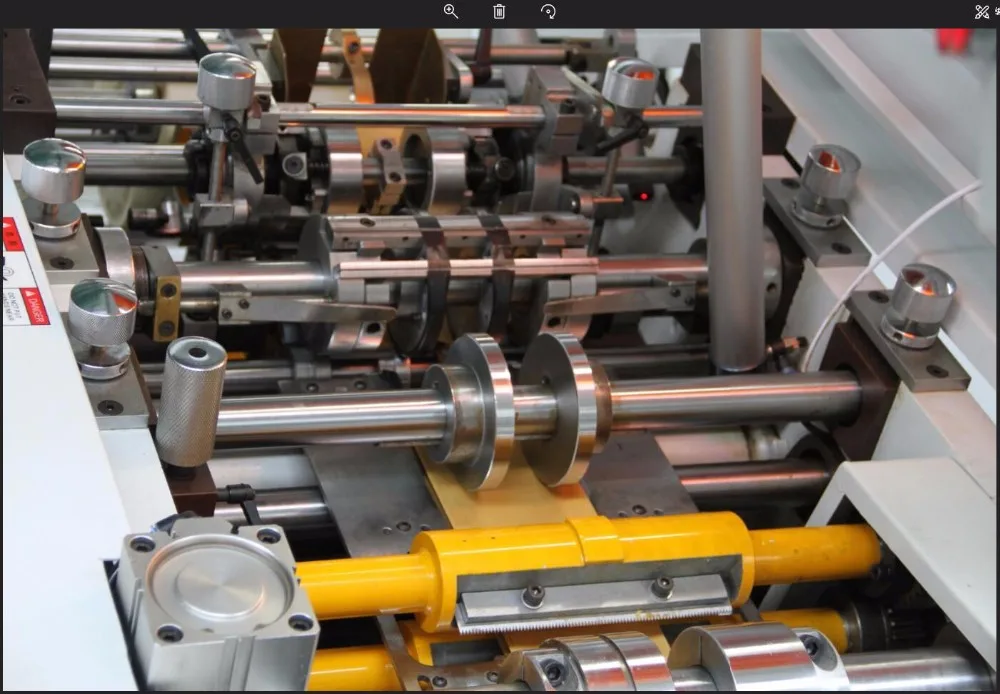

  • Rotary serrated cutter (or flat blade cutter) with elliptical gears  is used for cutting;  the cutting  length can be corrected by SICK photoelectric detector; Multi-layers bottom forming drum,  center grippers, second tuck clamps, and drum grippers are adjustable for ease of changeover; automatic disengaging function (bottom gluing is prevented for empty feeding to avoid contamination to the surface of the drum).

  • Paper bags are delivered by belt, and collected at vertical workbench, which is easy for operations; automatic counting function






  • Wenzhou Ruizhi Packing Machinery.,Ltd is professional machinery manufactuer
  • Wenzhou Ruizhi Packing Machinery.,Ltd was established in 1985. we have 28years machinery working experience
  • Wenzhou Ruizhi Packing Machinery.,Ltd was starting do  international business in 2002, our saler have 10-14years export experience.
  • Wenzhou Ruizhi Packing Machinery.,Ltd have four international B2B trade platform, Alibaba,Made-in-china,Global Sources,ETW
  • Wenzhou Ruizhi Packing Machinery.,Ltd have Perfect pre-sales and after-sales Services
  • Wenzhou Ruizhi Packing Machinery.,Ltd often join internatinal exhibition
  • Wenzhou Ruizhi Packing Machinery.,Ltd 's Production Capacity 500 Set Machine





  • Wenzhou Ruizhi Packing Machinery.,Ltd will send engineer to customer's factory install machine
  • The ticket and hote etc is customer pay  and customer pay 100USD/day to engineer for teach his worker
  • When machine parts damaged, we will free change in one year  warranty.
